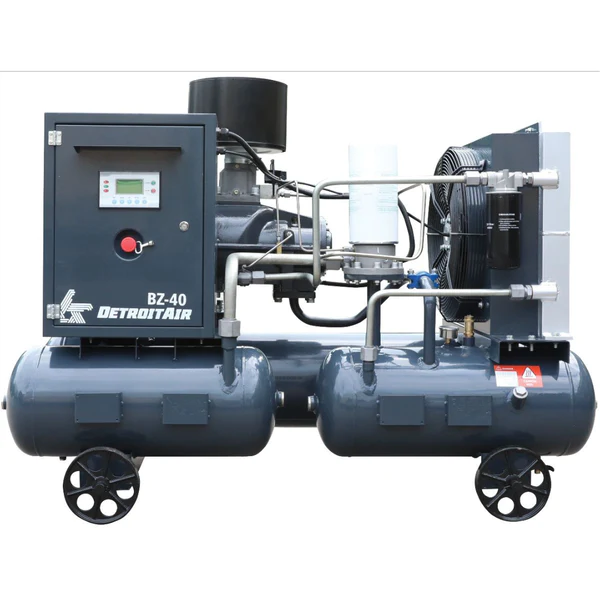

Model – BZ-40

Technical Data

• HP/KW – 40/30
• CFM –  152
• RATED PRESSURE (BAR) – 10
• TANK SIZE (LITRES) – 113L + 50L Pressure Vessel
• VOLTAGE (50Hz) – 380

 – Standard 10 bar max operating pressure.
 – Space saving design.
 – IP55 Motor structure.
 – Simple easy to maintain design.
 – Wheels for portability.
 – Included pressure vessel.
 – Splash proof/dust proof electrical cabinet.
 – Large scope of application.
 – ASME VIII Div.1 pressure vessel construction.

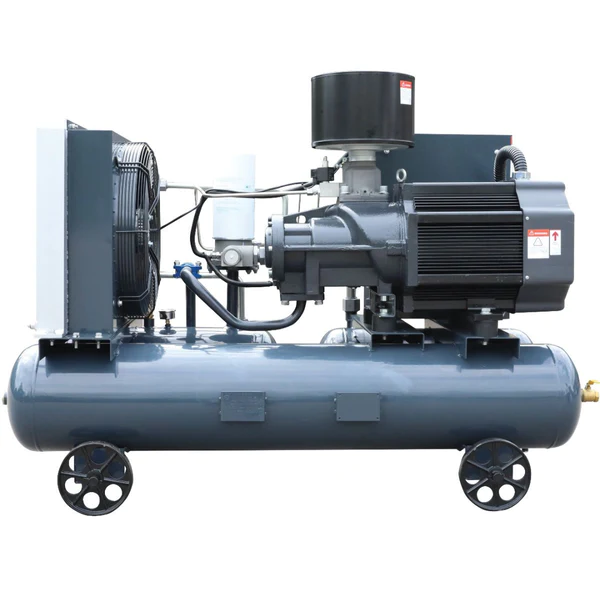

The BZ series of portable screw compressors has been specifically designed for portable field use, such as truck yards, small mines, hire units, back-up air, small workshops, tire shops, etc. They are a cost-effective portable solution for small to medium production. The units are easy to operate with a very simple control system, which is easy to service and inspect. Built onto a pressure vessel, this plug and play system is suitable for most applications in the field or indoors. The BZ series has an IP55 motor and covered control cabinet that is suitable for dusty environments. It also comes with durable cast wheels allowing for easy relocation within a worksite. The vessels are ASME certified which meets both local and international safety standards on most worksites. BZ models offer excellent versatility and durability to all industries.

The BZ range is aimed at the following applications:
 – Air hire.
 – Site work.
 – Back-up air.
 – Limited space installations.
 – Limited budget installations.

The BZ range was designed for the following types of businesses:
 – Service stations.
 – Medium sized workshops.
 – Vehicle dealerships.
 – Tyre fitment centers.
 – Small panel shops.
 – Truck yards.
 – Light manufacturing.
 – Agri pack houses.
 – Mining industries.
