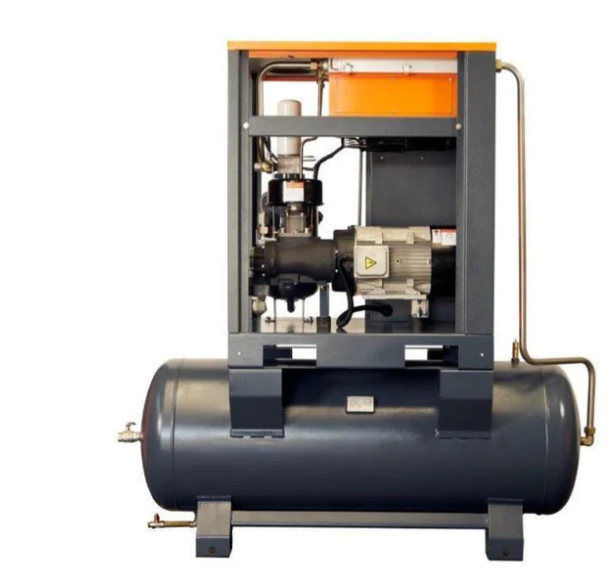

| MODEL |
G2DB-15PAK |
| MOTOR POWER |
KW |
11 |
| Unit of measure: |
Mpa/(m3/min) |
Airend air delivery measured according to ISO 1217 suction conditions. Based on 0,8MPa pressure. Applicable pressure 0,8MPa. |
|
FAD/Discharge Pressure
|
0.7Mpa |
1.65 |
| 0.8Mpa |
1.5 |
| 1.0Mpa |
1.38 |
| Unit of measure: |
(PSI/CFM) |
|
|
FAD/Discharge Pressure
|
100 |
58.3 |
| 116 |
52.7 |
| 145 |
48.7 |
| Drive Type |
Direct coupled |
| Start System |
Star-Delta |
| Oil type |
|
| Oil volume in Litres |
7.6 |
| Motor energy rating(%) |
90.3 |
| Motor Service factor |
1.1 |
| Full load current at 380v |
23.7 |
| Full load current at 400v |
22.6 |
| Full load current at 415v |
21.7 |
| Cooling Method |
Air Cooled |
| Fan motor power (Watt) |
190 |
| Cooler fan displacement (m3/min) per fan |
3900 |
| Required circuit breaker (Amp) |
Consult Your Electrician, Take Into Account Cable Losses Through Installation And Length |
| Minimum cable cross section (mm2) per core |
10 |
|
Dimensions (mm)
|
L |
1800 |
| D |
700 |
| H |
1750 |
| Net Weight |
Kg |
580 |
| Noise |
dB (A) |
66 ± 2 |
| Outlet Diameter |
G1″ |
All Pressure Vessels must be Pre-Commissioned when they are installed. Installation and Pre-Commissioning is not included in the price.
Warranty Information
Factory defects are covered on the air-end for a period of 5 years. This is calculated on hours used and is based on and 8 hour day, and two years on pressure and temperature sensors, PLC, fan, after-cooler and VSD drives. There is no warranty on the Electric Motor.
We do offer a limited good-will warranty for items that fail just out of warranty, our goal is to ensure a no-fuss support of your Detroit Air compressor.
This is subject to an up to Date Factory Manual Service Contract. First Services to be carried out in 3 months thereafter every 6 Months is required.
