Dimensions
Overall Length
6 800mm
Overall Width
2 115mm
Overall Height
2 990mm
Wheel Base
2 625mm
Min Ground Clearance
460mm
Max Dumping Clearance
3 500mm
Max Dumping Height
4 170mm
Dumping Reach
1 360mm
Specifications
Bucket Capacity
1.4m³
Rated Load
2.5 Ton
Raising Time
5.4s
Operating Weight
6 700kg
Max Breaking Force
86kn
Max Climbing Gradient
30°
Min Turn Radius
7 800mm

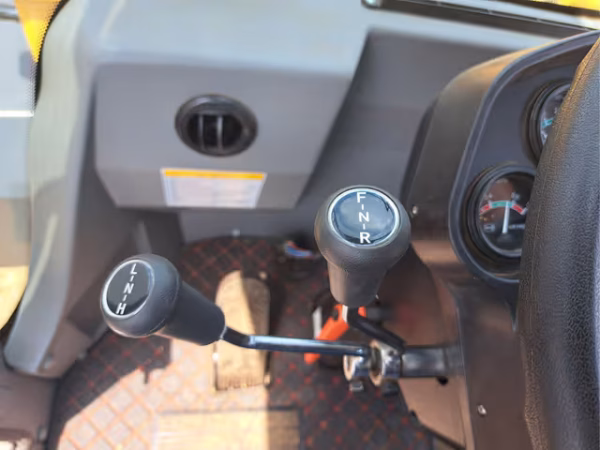

Traveling Speed
1st Gear
0 – 10 km/h
2nd Gear
0 – 22 km/h
Reverse 1st Gear
0 – 10 km/h
Reverse 2nd Gear
0 – 22 km/h

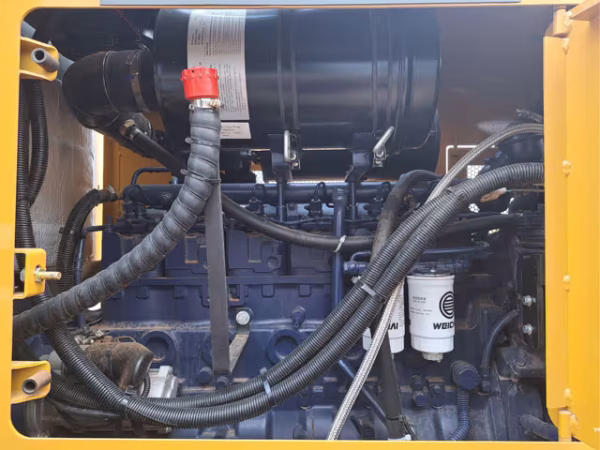

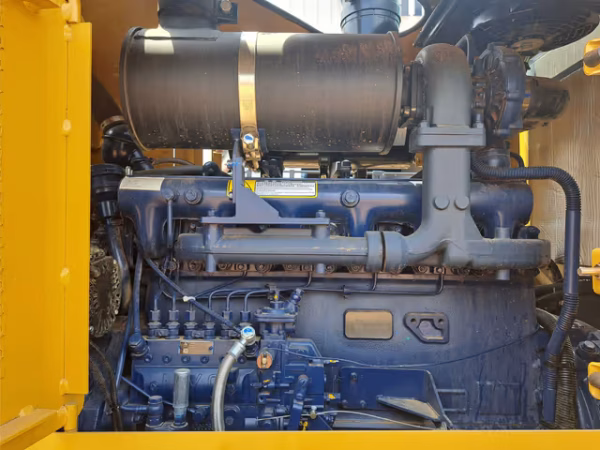

Engine
Rated Power
92kW
Rated Speed
2200rpm
Model
WP6G125E22

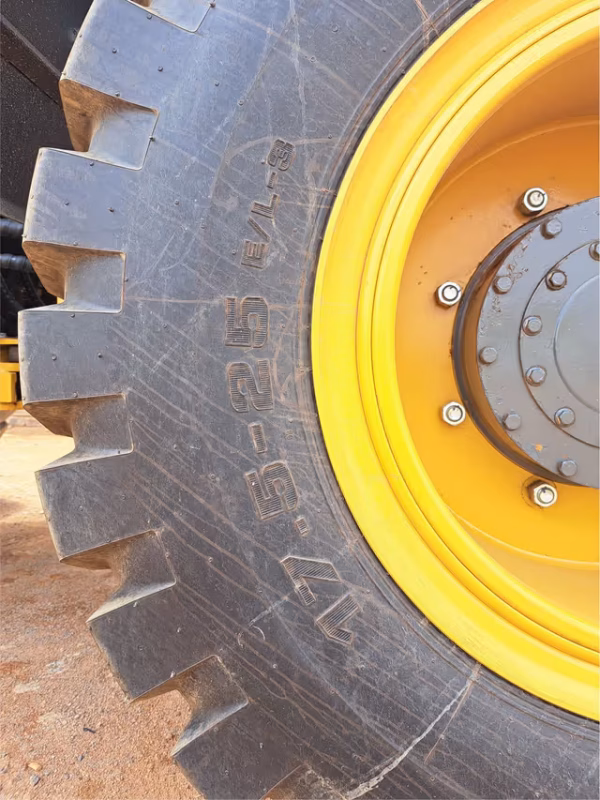

Tyres
Standard Size
17.5-25
Front Pressure
0.343mpa
Rear Pressure
0.294mpa
Tank Capacities

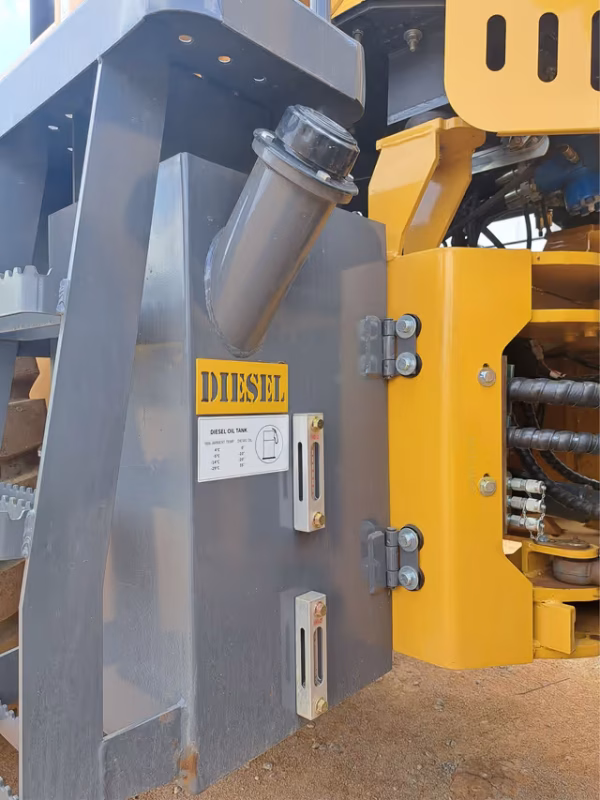

Fuel Tank
83 L

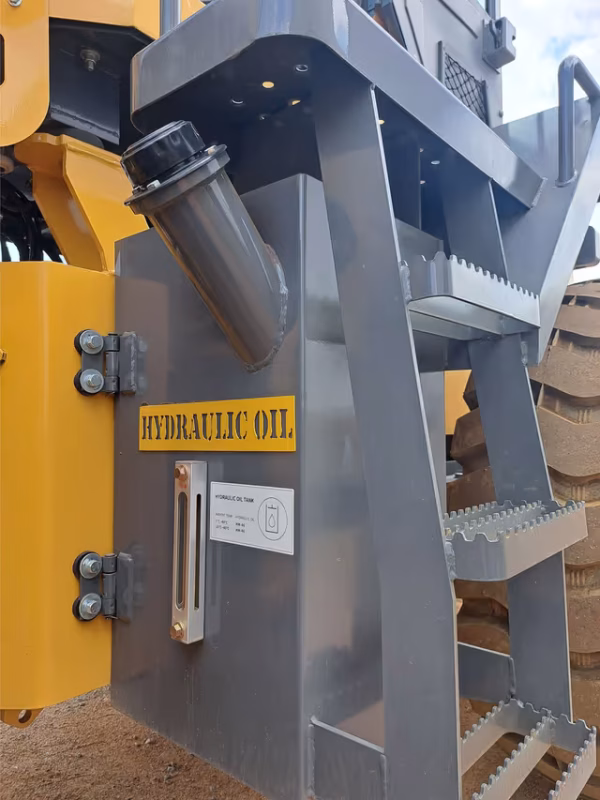

Hydraulic Oil Tank
44 L
Engine Oil
20 L
Gear Box
45 L
Axle and Final Reducer
28 L
Brake System
4 L
Transmission
Type
Power Shift Transmission
Main Valve Pressure Starts
1.20 – 1.40mpa
Flow Valve Pressure Starts
0.50 – 0.60mpa
Articulation
Type
Full Hydraulic Articulation Frame Steering
Steering Angle
30°

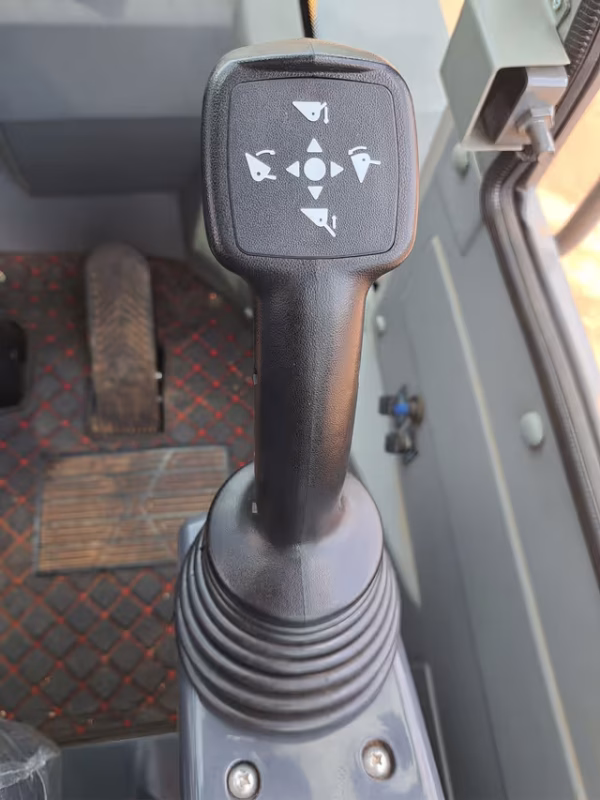

Working Hydraulics
System Type
Open Circuit
Working System Pressure
16mpa
Bucket Delivery Time
1.1s
Brake System
Brake Type
Hydraulic
Foot Brake Type
Air Assisted
